Configure

Shape the bar: where it sits, what it looks like, which outputs it covers, and the icons it draws.

Layout

• Left modules are packed from the left edge, right ones from the right edge, in the order listed; center ones are packed together and centered on the bar.
• Each module is as wide as its content plus --padding on both sides; --spacing separates neighbours, and a module’s own margin adds room on each side of it (Spacing). A module with nothing to show takes no space at all, padding, margin and spacing included.
• A rounded bar keeps its ends clear of the corners: the first module on the left and the last on the right start radius less half a padding in from the bar’s end, so their ink (a padding further in) and the workspaces pill (half a padding out) are never in a corner square.
• When they do not fit, the left part keeps its place, the right part gives way to it, and the center part is pushed off center to fit between them, then cut. Nothing overlaps and nothing is drawn past the bar’s end; text is clipped to its module’s space.
• Text is vertically centered on the bar. It is not shaped: one glyph per character, no ligatures, kerning or right-to-left runs (see Fonts for what is out of scope). A character no font in the chain has draws the primary font’s missing-glyph box. Control characters are not drawn.

Fonts

A font file, not a font name: there is no fontconfig. Without --font, the first of these that exists and loads is used:

/usr/share/fonts/truetype/dejavu/DejaVuSans.ttf         Debian, Ubuntu
/usr/share/fonts/dejavu-sans-fonts/DejaVuSans.ttf       Fedora
/usr/share/fonts/TTF/DejaVuSans.ttf                     Arch
/usr/share/fonts/truetype/DejaVuSans.ttf                openSUSE
/usr/share/fonts/dejavu/DejaVuSans.ttf                  Alpine
/run/current-system/sw/share/X11/fonts/DejaVuSans.ttf   NixOS, with fonts.fontDir.enable
/usr/share/fonts/truetype/noto/NotoSans-Regular.ttf     Debian, Ubuntu (Noto)
/usr/share/fonts/noto/NotoSans-Regular.ttf              Arch (Noto)

With none of them, and no --font, the daemon refuses to start (exit status 1), saying so and how to give one; it does the same for a --font it cannot use (missing, not a regular file, empty, over 64 MiB, or not a TrueType or OpenType font), naming the file and why. A bar with no modules placed draws no text and needs no font. On NixOS those directories are usually empty: give --font a store path (nix build nixpkgs#dejavu_fonts has share/fonts/truetype/DejaVuSans.ttf), or run the flake’s scootbar-demo, which gives it DejaVu Sans by default (docs/nix.md).

Replacing the font file while the bar runs cannot crash it, unless a root process rewrites a mapped store file in place through a read-write view (root ignores the write bit; nix-daemon never does, it adds, unlinks and renames whole paths). The font is mapped (costing only the pages drawn from, shared with every other program using the font) only when it is owned by root, has no write bit for anyone, and lies on a read-only mount: NixOS’s /nix/store. Every other font (your ~/.local/share/fonts, /usr/share/fonts, and a writable file seen through a read-only view such as systemd’s ProtectHome=read-only or flatpak’s /run/host/fonts) is read into the bar’s memory once, costing its size (about 740 KB for DejaVu Sans): copying a new file over it with cp, which truncates it in place, would kill a bar that had mapped it, and cannot touch one that read it. The file is read at start and on every reload: changing bar.font (or any option) and running scootbar msg reload swaps it live.

Fallback fonts and icons

bar.fallback-fonts (file only, no flag) names at most two more font files, tried in order for a character the primary lacks. A character is drawn from the first font in the chain that has a glyph for it; a fallback is asked only about characters the fonts before it lack. A character in none of them draws the primary’s missing-glyph box: never a blank, never a panic. Each fallback must load like the primary: one that cannot is a refusal naming it (a start-up error, or a refused reload with the running bar untouched), and more than two is a config error naming bar.fallback-fonts. Line height and vertical centering come from the primary alone. There is no fontconfig, so give the paths (Stylix supplies them on NixOS).

That is also how icons work: an icon is a glyph from a symbol font (Nerd Font, Material Symbols, Font Awesome) given as text in the config, with the symbol font as a fallback (or the primary). The clock takes one, drawn before the time with a space between:

[bar]
fallback-fonts = ["/path/to/SymbolsNerdFont-Regular.ttf"]
[clock]
icon = "\U000f0e65"   # or the character itself; exactly one, else a config error

The icon is one code point, not one grapheme: an emoji plus a variation selector or a ZWJ sequence is refused, but a lone format or combining character passes and draws as a .notdef box or a blank, so give a real symbol.

Glyphs are cached per font, size and scale, at most 512 glyphs and 4 MiB; past either the cache is dropped and refilled from what is drawn next, so arbitrary text (a window title) costs bounded memory. It is keyed by size, so outputs at different scales each keep their glyphs until the bound, rather than one dropping the other’s on every frame.

Out of scope, and will look wrong: shaping (ligatures, complex scripts such as Arabic or Devanagari, combining marks), right-to-left and bidirectional layout (text runs left to right in logical order), and color emoji (outlines in one color only; an emoji is drawn only if a font in the chain has an outline for it). A title in such a script draws per codepoint.

Real fonts, checked: DejaVu Sans with SymbolsNerdFont-Regular.ttf and NotoSansCJK-VF.otf.ttc (nixpkgs’ nerd-fonts.symbols-only and noto-fonts-cjk-sans) draw Latin, a symbol icon and Japanese, Korean and Chinese together. A .ttc collection loads (its first face), and so does a variable CFF2 font (its default instance). A CJK font is 30 MB or more, so put it where it is mapped (a read-only /nix/store) or expect its size in the bar’s memory, as for any font not on a read-only mount; see icons.md.

Colors

Modules name a state, never a color, and the state picks one of the theme’s color tokens: normal is drawn in fg, warn in accent, urgent in urgent and muted in dim. The clock is always normal. Every token has a [colors] key; bg and fg are --background and --foreground flags too. Their defaults are Catppuccin Mocha’s:

Token	Default
bg	#1e1e2e
fg	#cdd6f4
accent	#f9e2af
hover	the accent value (unset, it follows a custom accent: the tint was the accent before it had a token of its own)
dim	#6c7086
urgent	#f38ba8

What it does on the compositor

• One bar per selected output (Outputs), a layer surface (top by default) with the namespace scootbar (for compositor rules that match on it), anchored to its edge and both sides. An output plugged in later gets a bar; an output unplugged takes its bar with it, and the others are untouched. With no outputs at all the daemon waits, idle, for the first.
• It reserves its space (an exclusive zone), so windows are arranged beside it, never under it. The zone is set before the bar’s first frame is drawn: on scoot, windows move out of the way once, when the bar connects, and do not jump again when it draws.
• It takes no keyboard focus (but for the Escape key of an open popup, for as long as it is open). Pointer clicks on the workspaces module’s numbers switch to them (above); anywhere else clicks do nothing.
• It draws at each output’s real device pixels, fractional scales included (wp_fractional_scale_v1 with wp_viewporter). A compositor without those two gets the bar drawn at its integer scale (the fraction rounded up) and scaled down: sharp, not device-exact. The daemon says so on stderr at start-up.
• It draws only when something changes (a new size or scale, or a module’s content), and otherwise makes no system calls. Idle with the clock it wakes twice a minute: the clock’s tick, and about a millisecond later the compositor’s wl_buffer.release for the buffer that tick’s frame replaced (every wl_shm client gets one per frame; measured on scoot and sway). With no module placed it wakes zero times. There are no frame callbacks. A change redraws, and tells the compositor about, only the module that changed: a tick repaints and damages the clock’s own span, not the bar.
• If the compositor closes a bar (some do when an output goes away), it is made again once; closed a second time, that output is given up on until it is unplugged and plugged back in, and stderr says so.

Layers and the zone

--layer (or [bar] layer) picks the layer-shell layer the bar sits in. On scoot, bottom sits behind windows (they cover the bar where they overlap it) and top and overlay in front, and a fullscreen window hides the top layer (and the bar’s zone is covered with it): the bar disappears while something is fullscreen, which is the right default for a bar. overlay stays over fullscreen windows; ask for it on purpose. Fullscreen and maximize are different on purpose: a window that should fill the screen with the bar visible wants scoot’s maximize (Super+m, toggle-maximize). There is no background layer: that is the wallpaper’s.

--exclusive false (or exclusive = false) sends an exclusive zone of -1: the bar reserves nothing and windows go under it, and it also ignores any other bar’s zone. It is the choice for a floating overlay-style bar. With the default true the zone is the bar’s height, and the compositor adds the margin on the anchored edge (see Margins). Whichever layer: the bar never takes the keyboard, so clicking it never moves window focus.

Each of the three layers on each of the two edges, with and without the zone, is checked on headless scoot (crates/scootbar/tests/visibility.rs), along with the layer and the zone in the protocol requests themselves. Changing either on a running bar is a reload, which makes the surfaces again.

To toggle the bar from a key, bind it in scoot’s own config (the bar takes no keyboard, so it has no hotkey of its own):

[binds]
"super+b" = "spawn scootbar msg toggle"

Outputs

By default every output gets a bar, all alike. The top-level outputs key (or --outputs) picks which, and [output."NAME"] tables change one output’s bar. NAME is the compositor’s own name for the output (wl_output.name: the connector, DP-1, eDP-1, HDMI-A-1; scootctl outputs on scoot, swaymsg -t get_outputs on sway).

outputs = ["eDP-1", "DP-1"]     # before any [table]: TOML puts later keys in it
left = ["workspaces"]
right = ["clock"]

[output."DP-1"]                 # the external monitor: taller, at the bottom, no workspaces
height = 36
edge = "bottom"
left = []
right = ["clock"]

• outputs is "all" (the default) or a list of names: only those outputs get a bar. An output plugged in later that is listed gets one; one that leaves loses its bar (and nothing else). An output the compositor never named (a wl_output older than version 4) matches only all. Names are compared byte for byte. The flag is --outputs all or --outputs DP-1,eDP-1; given, it replaces the file’s list.
• [output."NAME"] takes edge, layer, exclusive, height, margin (the same values as [bar]) and left/center/right. A key not given keeps the shared value. Giving any of the three lists sets that output’s whole layout, as at the top level: a list not given is empty, and left = [] alone is a bar with nothing on it. Colors, the font, padding, spacing, radius, opacity and each module’s own options are shared by every bar. An output table wins over a flag for its output (--height 40 is the height of every output that does not set its own).
• Refused, naming the key: outputs = [] (hide the bar with msg hide instead), a name listed twice, an empty or over-long (128 bytes) name or one with a control character, more than 32 names or tables, an [output."X"] table for an output outputs leaves out (it could never apply; with outputs = "all" a table for an output that is not plugged in is fine), an unknown key, a bad value, and a module placed twice within one output (the same module on two outputs is the point). --outputs is checked against the file’s tables the same way, so the pair is a usage error, not a silent dead table.
• One set of modules, started once. The daemon starts each module in the shared layout or any output’s override a single time, even if a [output] table then leaves it off every bar, and every output’s bar reads it, so a second monitor adds a surface and its two buffers, not a second clock timer or a second set of file descriptors (checked in tests/outputs.rs: the daemon holds 8 fds with one output and 8 with two). A module’s change redraws only the outputs that show it. The workspaces module is shared too, and each bar shows its own output’s workspaces (see Workspaces for the switching limit). There is no “primary” output: to put a module on one output only, name that output in its table.
• Scale. Each bar is drawn at its own output’s real device pixels (fractional scales included), so text and pill scale with their output. A per-output font-size is not built; the em is the same logical size everywhere.
• radius is shared and at most half the shared height: on an output whose own height is smaller the corners are cut back to what that bar holds (radius is 0 to half the height at the file level).
• A reload re-places every output: one the list now leaves out loses its bar (and its zone), one it now includes gets one, and a bar whose geometry changed is made again. Modules are restarted as at any reload, except an exec whose table is unchanged, which keeps its child (above).
• hide/show keep to the list: a shown bar is made only on a selected output. The two reasons a bar can be absent (hidden, not selected) are independent, so a show after a reload that changed the list makes the new list’s bars.

Hiding the bar

scootbar msg hide destroys the bar’s layer surface and its buffers on every output: a hidden bar holds no wl_shm buffer (checked in tests/visibility.rs by counting the daemon’s memory mappings, which go to zero and come back), and its exclusive zone is released, so windows reclaim the space. show makes them again, committed with no buffer before the first draw as at start-up, so windows move once (back out of the bar’s way) and do not jump again when it draws; the round trip leaves a window where it started (also checked, sampling the window’s rectangle every few milliseconds across the show). toggle flips whichever it is. The reply says what is now the case: {"type":"bar","visible":false}.

• All three are idempotent, and applied once per loop turn with the net result: a burst of requests (forty toggles at once, say) is one change of the final state, never a hide-show-hide flicker, since the surfaces are made or destroyed only after every request that arrived together has been served.
• Hidden is runtime state. A reload keeps it (a geometry change while hidden just waits for the show), and a restarted daemon starts shown.
• An output plugged in while hidden gets no bar until show (and only if the list selects it); one that was unplugged and plugged in again is the same. show with no output is fine: each output’s bar is made when it arrives.
• A hide during a redraw needs no care: a draw is one synchronous step of the loop, and the hide is another. Events for a destroyed surface (a configure, a buffer release) are dropped, as after any removal.
• The modules keep running while hidden (the clock’s timer still fires every minute, or every second with a seconds format; a workspace change still wakes the daemon), and nothing is drawn: a hidden bar costs the process, not the surfaces. A bar with no module placed wakes zero times, hidden or not.
• A top bar under a fullscreen window needs nothing from scootbar: the compositor stops drawing the layer and the bar has nothing to do.
• hide after the compositor closed a bar (an output going away) forgets that: show gives it a fresh one, with one retry as at start-up.

Not built: auto-hide

An auto-hide bar that appears on pointer contact needs a thin always-present sensing surface at the edge, which is exactly what hide removes (a surface, a buffer, an input region and pointer events that wake the daemon). It was decided against for now, not measured: the cost that matters (a sensing strip’s pages and its pointer wakeups) would only be worth paying if the strip could beat a key bind that toggles the bar (above), which costs nothing when unused. Pointer input on the bar exists now (Pointer input), so the strip’s cost could be measured; it has not been, and the decision stands until it is.

Margins

The margin is sent to the compositor as the layer surface’s own margin, so the bar surface is exactly the bar: no transparent border, and nothing on the margin catches clicks. The compositor keeps windows clear of the bar and the margin on its edge: with --height 20 --margin 8,4, a top bar sits 8 pixels below the top edge, 4 in from each side, and windows start 28 pixels down. That is what the layer-shell protocol specifies (“the exclusive zone includes the margin”), and what scoot and sway both do.

The margin on the edge opposite the bar’s (the bottom margin of a top bar) does nothing; the protocol says so.

To line a floating bar up with scoot’s tiling, match --margin to scoot’s [layout] gap (configuration.md): windows then sit one gap below the bar, as they sit one gap from each other. The default is still a flush, square, opaque bar (flush to the edge with no margin); making it float is a choice, and these are the two settings to change together, with the values that match scoot’s defaults (gap 12):

# ~/.config/scoot/bar.toml: a floating bar that lines up with the windows
[bar]
margin = 12            # = scoot's [layout] gap
radius = 8             # = scoot's [appearance] corner_radius, if you round windows
opacity = 1.0

# ~/.config/scoot/config.toml: what they must match
[layout]
gap = 12               # the bar's margin

[appearance]
corner_radius = 8      # the bar's radius (0, square, is scoot's default)

Change gap and margin together and the bar keeps lining up; change only one and the bar’s edge drifts from the windows’. The bar does not read scoot’s config (it works on other compositors), so nothing keeps them in step but you.

Spacing

Three lengths, all logical pixels and all bounded 0 to 1024 (a value past that, negative or not a whole number is a loud refusal naming its key):

Key	Flag	What it spaces
[bar] padding	--padding	inside each module: room either side of its content
[bar] spacing	--spacing	between neighbouring modules in a section
[clock] margin, [workspaces] margin	none	outside one module: that much more room on each side of it, on top of spacing. Its own span never covers it, so a repaint of the module leaves it alone. A module with nothing to show takes none.

[bar] separator draws a line in the gap between neighbouring modules of a section: that many logical pixels wide, in the theme’s dim color, from a quarter to three quarters of the bar’s height, centered in the gap. It sits in the gap, so it needs one: separator may not exceed spacing (a larger value is refused, naming both), and the drawn line is cut back to the actual gap. The check is against the file’s spacing: a --spacing flag given later replaces it and can leave a separator wider than the gap, which is then cut to it (drawn narrower, never over a module). There is none between two sections, beside a module with nothing to show, or at the bar’s ends. 0, the default, draws none.

left = ["workspaces", "clock"]

[bar]
spacing = 12
separator = 1          # a hairline centered in each 12-pixel gap

[workspaces]
margin = 4             # 4 more either side: the gaps beside it are 20

Nothing here costs a frame: the lines are painted with the whole bar, never for a module’s own repaint, and the layout is worked out only when a width or the size changes.

Shape and opacity

[bar] radius rounds the bar’s four corners, in logical pixels: 0 (the default) is square, and the most is half the height (a pill), which the file enforces (bar.radius names the limit when it is refused). [bar] opacity is the background’s alpha, 1 (the default) opaque down to 0 transparent; text stays fully opaque over it. There is no blur, gradient or shadow.

[bar]
height = 28
margin = "8,8"     # match scoot's [layout] gap: see Margins
radius = 10
opacity = 0.9

• The corners are analytic: each edge pixel’s alpha is how far its center sits inside the circle, no supersampling. The coverage of one corner is computed once per radius and scale, and the other three mirror it, so a repaint costs a table lookup for the few pixels in a corner.
• A rounded or translucent bar is an ARGB8888 buffer (premultiplied); a square, opaque bar stays XRGB8888, exactly as before either option. Only the surface is the bar, never a bigger transparent one: the margin is still the protocol’s, and the corner pixels are the only transparent ones.
• Opaque region: an opaque bar tells the compositor which pixels are opaque, so it can skip blending under them (all of a square bar; all but the four corner squares of a rounded one). A translucent bar declares none: the compositor blends all of it, which is the cost of the option.
• The radius is cut back to fit: --height below twice the file’s radius (the flag replaces the file’s height), or a compositor giving the bar less height than asked, draws the corners as large as the bar holds.
• Text is kept out of the corners, not clipped to them: the layout clears the bar’s ends by the radius (see Layout), so no ink is near a corner whatever padding is. This costs the radius less half a padding of room at each end, and needs no per-pixel clipping in the paint; a bar whose radius is 0 loses nothing.
• Corners are not clickable: the surface’s input region is the rounded shape (one rectangle per corner row, at most 2 x radius + 1, set when the size or radius changes), so a click in a cut corner reaches what is behind the bar (the wallpaper, a window under a bar that does not reserve space) instead of an invisible bar. scoot honors wl_surface.set_input_region on layer surfaces, checked end to end on a headless scoot: a click in the window’s corner under a rounded bar focuses that window, and the same click under a square bar does not. The region is in logical pixels, so it is the same at every scale (at a fractional scale it can differ from the drawn edge by a device pixel). A compositor that ignores input regions leaves the corners clickable, which is the protocol’s fallback.
• Popups round separately: [bar] radius never rounds a popup; that is [bar] popup-radius (Popups), which follows this radius when unset.
• Measured costs (release build, 1600x28 bar, radius 14): filling the whole bar takes 4.9 us square and 6.1 us rounded and translucent; 3200x56 (scale 2), 16.2 us and 29.2 us. A repaint of one module’s span, the common case, costs the same as before except in the rows of a corner.

Icons and fonts: mechanism and measurements

The reference for the config keys is the Icons section; this is the mechanism and the measurements behind it, for the button, push, exec, volume, microphone, network, battery, brightness, bluetooth, media and window-title modules that reuse it, and for whoever asks “why not X”.

An icon is one of three things, chosen by which config key a module’s section sets (at most one):

Key	What	Cost	Built
icon = "\U000f0e65"	One glyph from the font chain (a symbol font as a fallback)	one more font file	always
icon-path = "M12 2 ..."	SVG path data, filled by the bar’s own rasterizer, tinted from the theme	+36.9 KB of binary	always
icon-image = "/abs/icon.png"	A PNG, decoded once, scaled at the output’s real scale	+115 KB of binary	--features icon-image

The clock was the first module with an icon. A module names an icon, never pixels: it holds an Icon (src/icon/mod.rs) from its settings and shows it with View::show_icon; config/icon.rs turns the three keys into one, and the render path measures, lays out and draws it. The per-module icon keys arrive with the modules that need them (button, push, exec, volume, microphone, network, battery, brightness, bluetooth, media, window-title, in their own tickets): each takes the same three keys through config::icon, and none is invented ahead of its module.

Path icons

src/icon/path.rs parses the d attribute of an SVG <path> by hand: M m L l H h V v C c S s Q q T t A a Z z, implicit repeats (M 1 2 3 4 is a move and a line), shorthand numbers (.5.5, 1e2, -1-2), arc flags without separators (a1 1 0 00.5.5). Relative commands become absolute, quadratics become cubics and each arc becomes at most four cubics (the endpoint-to-center conversion of the SVG implementation notes, F.6), so the rasterizer sees only lines and cubics. Nothing is guessed: a stray character, a missing argument, a bad flag, a number that is not finite or past 1,000,000, a path that does not start with M, or one that draws nothing is an error naming the byte it stopped at, and the config error names the key (clock.icon-path: not usable SVG path data: at byte 7: expected a number). The bounds are 16 KiB of text, 1024 commands (an implicit repeat counts each time) and 4096 segments; a fuzzed-string test (20,000 random and 20,000 mutated strings, plus every truncation of a corpus of real icon paths) runs on every cargo test, and another feeds hostile numbers (1e6 coordinates, radii of 1e-6, a 0.001-unit viewbox) through the rasterizer.

The path has no size of its own, so icon-viewbox = "min-x min-y width height" says which part of its plane is the icon. The default is 0 0 24 24 (Material’s); Font Awesome’s are 0 0 512 512 and so on. The viewbox is fitted into the icon’s square with SVG’s xMidYMid meet: scaled uniformly, centered.

src/icon/raster.rs fills it analytically, with no supersampling: the signed-area accumulation font-rs and ab_glyph use for glyphs. Each edge adds the area it uncovers into a buffer of one float a pixel; a running sum along each row is the coverage. Curves are flattened first into at most 48 lines within 0.025 px of the curve (a circle of radius 10 then covers 0.3% less area than the true one; at a tenth of a pixel it was 1.1%, visibly small). The fill rule is the accumulated winding clamped to 0 to 1: SVG’s default nonzero for icons as drawn (a hole wound the other way cancels, overlapping same-direction shapes saturate). Edges outside the square are clamped to it, so a path past its viewbox costs nothing and cannot write outside the buffer.

The size is the em in device pixels, rounded, so the icon is as tall as the text’s em at whatever scale the output is at: the bitmap is made at that size, never a smaller one stretched. It is drawn tinted with the theme token of the view’s class (normal fg, warn accent, urgent urgent, muted dim), so it follows Stylix like the text beside it. A gap of one space of the primary font follows it when text does.

The cache clears wholesale past 16 (icon, size) pairs or 4 MiB, and an image’s scaling allocates a temporary buffer on each miss (up to 8 MiB for a 1024-pixel source), so it starts to matter when several modules and outputs at different scales all use icons: each refill is a burst of work and allocation at the next draw, though never per frame in steady state.

The bitmap is cached per (icon, size) in one arena of at most 4 MiB and 16 entries; past either the cache is dropped and refilled from what is drawn next (the glyph cache’s rule), and a size past 512 pixels draws nothing and takes no room. A new output scale is a new size, so it is one miss. A warm repaint allocates nothing (render/tests/icons.rs, counted through scootbg_mem’s allocator).

Measured

Release build (lto = "fat", codegen-units = 1, strip), one core of a 4-vCPU container, cargo test --release ignored benchmarks (thrown away, not committed) at the commit before this record:

parse a 149-byte cloud path	1.0 us
rasterize the cloud at 14 / 16 / 21 / 24 / 32 / 64 px	2.3 / 2.4 / 3.0 / 3.5 / 6.2 / 13.8 us
the same at 128 / 512 px	32 / 374 us
a ring (two arcs, four 90-degree cubics each) at 24 / 512 px	5.7 / 498 us
a warm repaint of the whole bar, 1920x28, three text modules, before / after this change	5.78 and 6.64 us / 5.07 and 6.66 us (two runs each: noise)
an unchanged repaint (nothing to do) before / after	0.043 and 0.039 us / 0.031 and 0.040 us

So a path icon costs microseconds once per (icon, size) and nothing per frame: the draw path for a view with no icon gained one Option check. Binary size (release, the bar built alone, sizes in bytes):

Build	main	this change
--no-default-features (no module)	1,164,032	1,168,128 (+4,096)
default (clock, workspaces)	1,442,576	1,479,448 (+36,872, +2.6%)
default + icon-image		1,594,136 (+114,688 for the decoder)

Sizes re-measured on the final code (cargo build --release -p scootbar twice, identical: main’s default is 1,442,576 and its --no-default-features 1,164,032, rebuilt from origin/main; a size taken at an earlier commit of this branch differs by a few KB, as the config plumbing grew).

Idle RSS of the default release bar on headless scoot with a clock and a path icon is 4,792 kB against 4,744 kB without the icon (VmRSS after 2.5 s; the cache holds one 15 x 15 bitmap).

Image icons

icon-image = "/abs/path.png" (an absolute path; a relative one is refused) in a build with the icon-image feature. src/icon/image.rs decodes it once, when the config is read (so a bad file is a refused reload naming clock.icon-image, with the running bar untouched), holds it as a premultiplied b, g, r, a bitmap, and drops it with the module at the next reload. It uses the png crate the workspace already carries (scootbg, scoot), 0.18, MIT OR Apache-2.0, default features, no new package in the tree.

The feature is off by default, measured: the decoder is +114,688 bytes on a 1,479,448-byte bar (+7.8%), and the resource ratchet does not let a row regress for a feature most bars will not use, where a path icon does the same job for 37 KB and follows the theme. --no-default-features is the smallest build either way. Build it in with --features icon-image, or on Nix through the module’s features list (programs.scootbar.features = [ "clock" "workspaces" "icon-image" ], see Overview). Without it the key is unknown, and the config error says so, as for a module that is not built. The CI matrix treats it as one more feature: clippy and unit tests alone and combined, and the headless-scoot test with it on.

Where it runs: on the daemon’s main thread, when the config is read (start-up and every scootbar msg reload), so a large file stalls the bar for as long as it takes to decode: measured worst cases, release, 10.7 ms for a 1024 x 1024 RGBA image, 24 ms for a 4.5 MB file of 300,000 tEXt chunks (the flood test is in the tree); the scaling to a size happens at the first draw of that size (6 ms for 1024 to 512 px). Nothing runs per frame.

Bounded like the font loader: opened O_NONBLOCK and required to be a regular file (a FIFO or device is refused without a read; a symlink loop is the kernel’s ELOOP), at most 8 MiB, read whole (a file that grew past that since fstat is cut and refused); the decoder has a 16 MiB allocation budget and the header’s size is checked before any pixel buffer exists (at most 1024 x 1024, so a 100000 x 100000 header is refused once the header chunk is read). Tests refuse a truncated file at every length, a bad checksum in the header and in the data, a zero size, oversize headers, and compressed data 4096x larger than its header declares. Ignored on purpose: gamma (gAMA), sRGB, ICC profiles and text chunks: the pixels are taken as stored, and tEXt/zTXt/iTXt/iCCP are discarded as they are read (the decoder’s 16 MiB budget covers pixel and row buffers, not ancillary chunks, so keeping them let an 8 MiB file of ~600k tiny tEXt chunks reach 71 MB of RSS in review). Adam7-interlaced files and APNG (the default image, whether or not an fcTL precedes its IDAT) are tested pixel-exact. Palettes, 1 to 16 bits, gray, gray and alpha, RGB and RGBA are all read (the decoder expands them to 8-bit RGBA); an animated PNG shows its default image.

The filter: a separable triangle (bilinear) filter over premultiplied color, its support widened to the scale ratio when shrinking (so it is an area average: a 256-pixel icon at 20 pixels is smooth, and no source pixel is skipped), plain bilinear when enlarging. Premultiplied, so a transparent pixel’s color never bleeds into its neighbor as a fringe. The image is fitted into the em-sized square keeping its aspect ratio, centered, with transparent margins, and drawn source-over with its own colors (not tinted). A full-color SVG is converted to PNG ahead of time (the Nix module can do it in a derivation): no SVG files and no resvg in the bar.

Measured, release: decode 256 x 256 RGBA 0.56 ms, 1024 x 1024 10.7 ms; scale 256 to 24 px 0.12 ms, 1024 to 24 px 1.8 ms, 1024 to 512 px 6.0 ms. All once, at load or at the first draw of a size, never per frame. The cache holds one side x side x 4 bitmap per size (a 21-pixel icon is 1.7 KB).

Fonts: what the real ones do

The fallback chain is documented in (./cli.md#fallback-fonts-and-icons) and was tested against the test font in code. To check it against real ones, the run on headless scoot (scale 1, a 32-pixel bar, 15 px) was:

• primary DejaVuSans.ttf (nixpkgs dejavu_fonts.minimal, /nix/store/zqhby0xidpi0xsafsbl4l7dc72imqqq6-dejavu-fonts-minimal-2.37),
• fallbacks SymbolsNerdFont-Regular.ttf (nerd-fonts.symbols-only 3.5.0, /nix/store/hqsjk54dhxf2s380j6rrnn4jx6a5xwrm-nerd-fonts-symbols-only-3.5.0) and NotoSansCJK-VF.otf.ttc (noto-fonts-cjk-sans 2.004, /nix/store/dllg6pqphyxipzwihzb6phmjlq4r0w4b-noto-fonts-cjk-sans-2.004),
• [clock] format = "%H:%M 日本語 한국어 中文", icon = "\U000f0e65".

The symbol icon, the Latin digits and the three CJK scripts all draw, from three files, with no .notdef box. What the run showed beyond the picture:

• A .ttc collection loads (index 0), and so does a variable CFF2 font (NotoSansCJK-VF): ab_glyph reads its default instance.
• A 32 MB CJK font costs its size in memory unless it is mapped: it was read into the heap here (RssAnon 35,432 kB, VmRSS 39,140 kB with all three fonts), because this container’s /nix/store is a writable mount and the bar maps a font only from a read-only one (Fonts); on NixOS it is mapped, and only the pages of the glyphs drawn are resident. A bar that needs CJK on another distribution pays the file’s size (this one is 32.7 MB).
• Shaping is not done: the run is per codepoint, in order (see the out of scope list in cli.md).

Hinting: swash against ab_glyph, decided

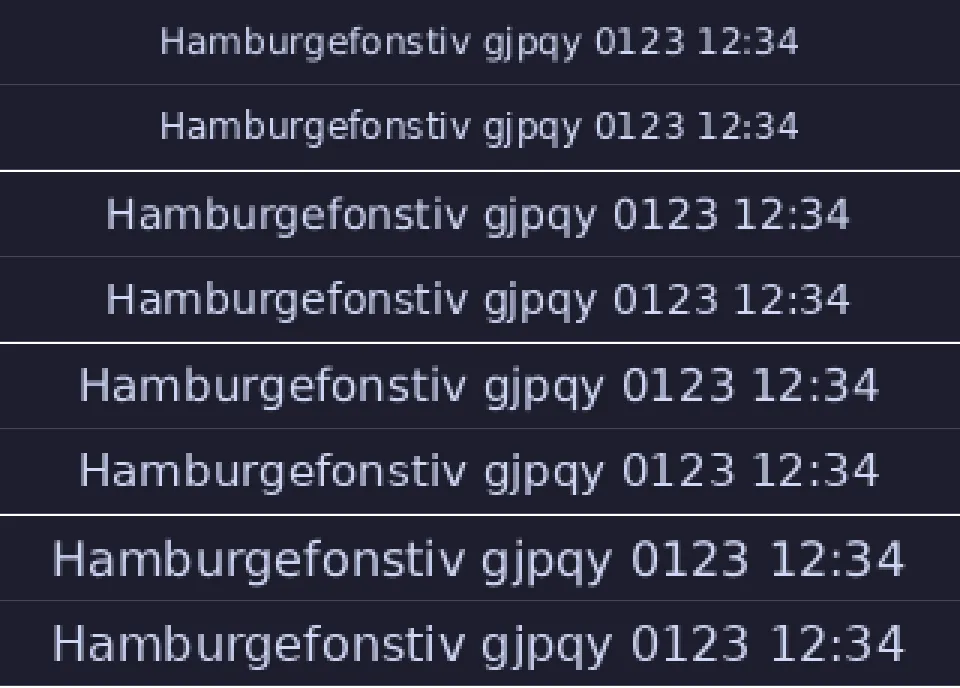

The ticket asked whether 1x text needs hinting. A throwaway copy of the bar (not in the tree) replaced only ab_glyph’s rasterization with swash 0.2.10 hinted (Render with hint(true), TrueType instructions), everything else the same, and rendered the same text at 12, 14, 15 and 16 px at scale 1 in DejaVu Sans on headless scoot. In the image each pair is ab_glyph (top) then swash hinted (bottom), 3x nearest-neighbor, sizes 12, 14, 15, 16 from the top:

	ab_glyph (shipped)	swash hinted	Cost
Release binary, default features (both at 804c0d1)	1,467,160 B	2,310,928 B	+843,768 B (+57%)
Idle VmRSS, three runs at 15 px	4,780 / 4,760 / 4,796 kB	5,580 / 5,532 / 5,592 kB	+0.79 MB (+16.7%), PSS +0.79 MB

(RssAnon +50 kB and RssFile +0.75 MB: the cost is the code’s pages, not the glyph cache.) Ink pixels in the crop, by how much of them are partial coverage (20 to 80%) and how many are fully inked (90% or more):

px	partial, ab_glyph / swash	full, ab_glyph / swash
12	55.4% / 51.2%	13.1% / 20.5%
14	57.1% / 54.3%	18.0% / 22.3%
15	46.3% / 48.5%	23.4% / 28.3%
16	49.0% / 45.9%	25.0% / 29.5%

Decision: do not ship swash. Hinting does snap horizontal stems (more fully inked pixels, four to seven points, and 3 to 13% fewer ink pixels), and a side-by-side shows a slightly crisper x-height and crossbars at 12 and 14 px. But the difference is small (the share of blurry pixels moves by three or four points and at 15 px goes up), where the cost is 57% more binary and a sixth more memory for the smallest consumer of either, which is the resource ratchet’s whole point; and the bar is meant for HiDPI outputs at fractional scales, where device-pixel sizes are large and hinting matters least. Revisit if a real user on a 1x display reports blurry text, and try the cheaper levers first (a contrast curve on the coverage, a gamma-corrected blend). Nothing in the bar depends on the choice: the rasterizer is one function, Text::fill.

What was not built

• Icon-theme lookup (.desktop files and named icons, option 4): only the tray or window icons force it, and it is the heavy path (loading and decoding files). It is not started.
• A libFuzzer target for the path parser. The stable property tests (above) run on every cargo test; the clock’s two parsers have cargo fuzz targets because CI budgets them, and the path parser would be a third with the same shape (icon/path.rs uses only std, so it compiles by #[path] as they do) if a finding ever calls for it.
• Built-in bitmaps or paths compiled in for the built-in modules (mute, wifi bars, battery levels): those modules do not exist. The mechanism is what they will use.
